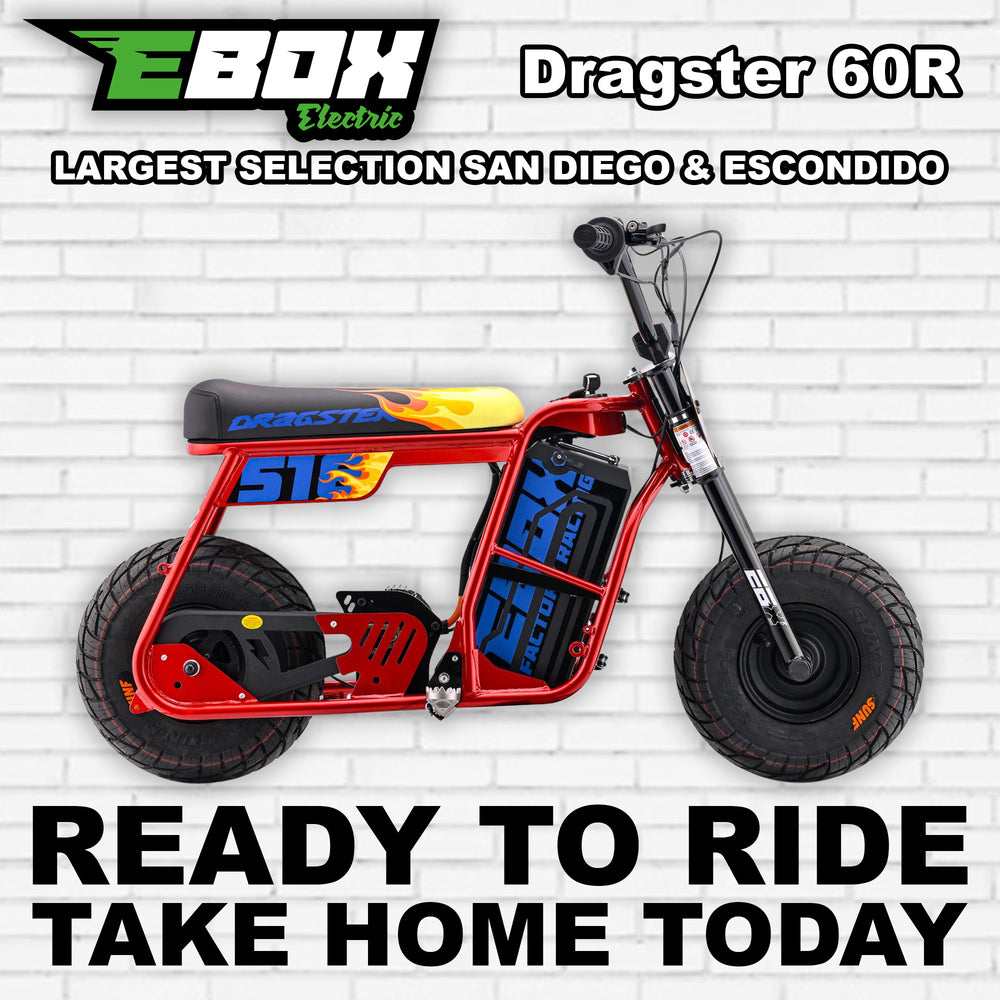

eMOTO Stomp Ebox Dragster 60R - Red - Ready to Ride
Stomp Ebox Dragster 60R - Red - Ready to Ride Electric Bike
Stomp Ebox authorized dealer in San Diego & EscondidoSan Diego eBike Super Shop works with riders across Escondido and San Diego through in-store support, local pickup availability, and shipping across the USA.
The Stomp Ebox Dragster 60R - Red - Ready to Ride brings together compact sizing, easy maneuverability, and everyday practicality for riders who want a simple electric bike for city use. With a responsive motor, responsive power delivery, and electric assist, it offers controlled assistance up to city-friendly speeds, while a practical battery system and 25-28 miles (40-45Km) support practical routine riding. Its compact proportions help keep the ride manageable and approachable. compact wheels and city-friendly proportions help the bike stay practical for everyday use.
Note: Wheelie bar not included with bike. Wheelie bar available here.
Key Features
- 60V EBX PMSM motor (temp feedback + encoder): 60V EBX PMSM motor with temp feedback and encoder, with max RPM of 8,500.
- Power output: Rated Power 4.5KW, Peak power 5.2KW (6.7hp).
- 80 Amp fardriver controller: Matched with a sealed wiring harness and automotive connectors.
- 60V 26Ah battery system: New 60v 26 Ah battery with BMS 18,600 Cells potted in steel case with QS8 connector and air breaker switch.
- 3-mode TFT odometer display: TFT odometer display with 3 speed modes and fault code analysis software.
- Hydraulic disc braking: Hyraulic Disc (Right lever) e-moto brakes front and Hyraulic Disc (Left lever) e-moto brakes rear, with Wavey rotor 160mm, 6 bolt 48mm BCD (front and rear).
- Mini wheel setup: 6" front wheel size and 6" rear wheel size with 145/70-6 SUNF fast SM tyres (front and rear).
- Frame construction details: High strength steel, removable motor plate, integrated chain tensioner, loop tail design, quick release battery system, 2-point foot peg position mounts, frame mounted stunt peg compatible.
- Rider convenience: USB A + C charging port.
- IP rating: IP54 waterproof.
Specifications
| Feature | Details |
|---|---|
| Frame type | Full duplex |
| Frame construction | High strength steel, removable motor plate, integrated chain tensioner, loop tail design, quick release battery system, 2-point foot peg position mounts, frame mounted stunt peg compatible. |
| Fork | Rigid High Tensile |
| Handlebar | High Tensile 2 Piece 29.5" x 7" |
| Bar Risers | Cast alloy 36mm rise Ø22.2 |
| Seat | Dragster seat |
| Front wheel size | 6" |
| Rear wheel size | 6" |
| Front tyre | 145/70-6 SUNF fast SM tyres |
| Rear tyre | 145/70-6 SUNF fast SM tyres |
| Front brake | Hyraulic Disc (Right lever) e-moto brakes |
| Rear brake | Hyraulic Disc (Left lever) e-moto brakes |
| Front disc | Wavey rotor 160mm, 6 bolt 48mm BCD |
| Rear disc | Wavey rotor 160mm, 6 bolt 48mm BCD |
| Chain | 219H 108L |
| Gearing | Front 10T, Rear 55T |
| Motor | 60V EBX PMSM motor with temp feedback and encoder |
| Rated Power | 4.5KW |
| Peak power | 5.2KW (6.7hp) |
| Max RPM | 8,500 |
| Battery | New 60v 26 Ah battery with BMS 18,600 Cells potted in steel case with QS8 connector and air breaker switch |
| Controller | 80 Amp fardriver controller |
| Throttle | SURRON style full twist |
| Display | TFT odometer display with 3 speed modes and fault code analysis software |
| Connectors | Automotive connectors with sealed wiring harness |
| Charger | AC 100-240V, Output: 67.2V, 5A |
| Charge time | 4-5 hours |
| Range | 25-28 miles (40-45Km) |
| Top speed | 53mph (85Km/h) |
| External adjustability | 3 riding modes |
| Waterproof | IP54 |
| Other | USB A + C charging port |
| Wheelbase | 882mm |
| Ground clearance | 120mm |
| Seat height | 585mm |
| Bar height | 810mm |
| Bike Weight | 47kg (103lbs) |
| Max load | 100kg |
Assembly & Build Options
The “Ready to Ride” option includes full professional assembly by our certified technicians. Each eBike is carefully built, safety-checked, tuned, and test-ridden to ensure optimal performance and reliability before pickup.
Your eBike will be fully prepared for immediate riding from our retail location — no setup required. In the event of a manufacturer-covered warranty issue, our service team will coordinate directly with the manufacturer on your behalf, including parts processing and warranty facilitation. Visit our store to see the eBike in person and take a test ride today.
Manufacturers Warranty: https://stompmoto.com/warranty/
User Manual: https://cdn.shopify.com/s/files/1/0877/9435/2404/files/eMOTO_Stomp_Ebox_V3_60_R_User_Manual.pdf?v=1767690976
Why Choose This Model?
The Stomp Ebox Dragster 60R - Red - Ready to Ride stands out as a compact electric bike that keeps everyday riding approachable without feeling stripped down. Its responsive motor, support up to controlled, compact wheel setup, its battery system, and 25-28 miles (40-45Km) all work together to create a package that feels practical for errands, neighborhood trips, and routine city use.
At San Diego eBike Super Shop, this model makes particular sense for riders who want manageable sizing, straightforward controls, and useful features such as disc brakes.
Explore More
Explore more commuter-friendly, compact, and city-ready eBikes at San Diego eBike Super Shop, where everyday practicality, approachable design, and useful electric mobility remain central to the lineup.
San Diego eBike Super Shop supports local riders in Escondido and San Diego while also giving customers nationwide access through shipping available across the USA.
